RNN梯度消失与梯度爆炸推导

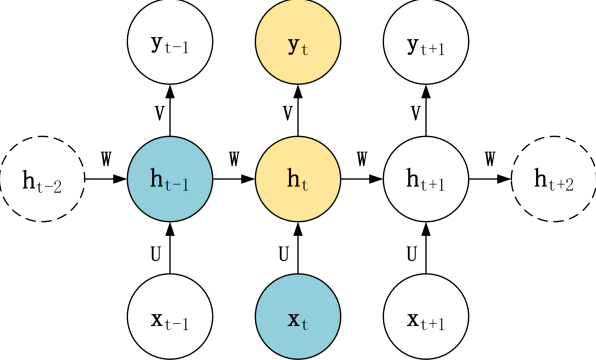

\large \begin{aligned} h_t &=\sigma(z_t) = \sigma(Ux_t+Wh_{t-1} + b) \\ y_t &= \sigma(Vh_t + c) \end{aligned}

梯度消失与爆炸

假设一个只有 3 个输入数据的序列，此时我们的隐藏层 h1、h2、h3 和输出 y1、y2、y3 的计算公式：

\large \begin{aligned} h_1 &= \sigma(Ux_1 + Wh_0 + b) \\ h_2 &= \sigma(Ux_2 + Wh_1 + b) \\ h_3 &= \sigma(Ux_3 + Wh_2 + b) \\ y_1 &= \sigma(Vh_1 + c) \\ y_2 &= \sigma(Vh_2 + c) \\ y_3 &= \sigma(Vh_3 + c) \end{aligned}

RNN 在时刻 t 的损失函数为 Lt，总的损失函数为 $L = L1 + L2 + L3 \Longrightarrow \sum_{t=1}^TL_T$

t = 3 时刻的损失函数 L3 对于网络参数 U、W、V 的梯度如下：

\begin{aligned} \frac{\partial L_3}{\partial V} &= \frac{\partial L_3}{\partial y_3} \frac{\partial y_3}{\partial V} \\ \frac{\partial L_3}{\partial U} &= \frac{\partial L_3}{\partial y_3} \frac{\partial y_3}{\partial h_3} \frac{\partial h_3}{\partial U} + \frac{\partial L_3}{\partial y_3} \frac{\partial y_3}{\partial h_3} \frac{\partial h_3}{\partial h_2} \frac{\partial h_2}{\partial U} + \frac{\partial L_3}{\partial y_3} \frac{\partial y_3}{\partial h_3} \frac{\partial h_3}{\partial h_2} \frac{\partial h_2}{\partial h_1} \frac{\partial h_1}{\partial U} \\ \frac{\partial L_3}{\partial W} &= \frac{\partial L_3}{\partial y_3} \frac{\partial y_3}{\partial h_3} \frac{\partial h_3}{\partial W} + \frac{\partial L_3}{\partial y_3} \frac{\partial y_3}{\partial h_3} \frac{\partial h_3}{\partial h_2} \frac{\partial h_2}{\partial W} + \frac{\partial L_3}{\partial y_3} \frac{\partial y_3}{\partial h_3} \frac{\partial h_3}{\partial h_2} \frac{\partial h_2}{\partial h_1} \frac{\partial h_1}{\partial W} \\ \end{aligned}

其实主要就是因为：

对V求偏导时， $h_3$ 是常数
对U求偏导时：
- $h_3$ 里有U，所以要继续对h3应用chain rule
- $h_3$ 里的 $W, b$ 是常数，但是 $h_2$ 里又有U，继续chain rule
- 以此类推，直到 $h_0$
对W求偏导时一样

所以：

\begin{aligned} \frac{\partial L_t}{\partial U} = \sum_{k=0}^{t} \frac{\partial L_t}{\partial y_t} \frac{\partial y_t}{\partial h_t} (\prod_{j=k+1}^{t}\frac{\partial h_j}{\partial h_{j-1}}) \frac{\partial h_k}{\partial U} \\ \frac{\partial L_t}{\partial W} = \sum_{k=0}^{t} \frac{\partial L_t}{\partial y_t} \frac{\partial y_t}{\partial h_t} (\prod_{j=k+1}^{t}\frac{\partial h_j}{\partial h_{j-1}}) \frac{\partial h_k}{\partial W} \end{aligned}

其中的连乘项就是导致 RNN 出现梯度消失与梯度爆炸的罪魁祸首，连乘项可以如下变换：

$h_j = tanh(Ux_j + Wh_{j-1} + b)$
$\prod_{j=k+1}^{t}\frac{\partial h_j}{\partial h_{j-1}} =\prod_{j=k+1}^{t} tanh' \times W$

tanh' 表示 tanh 的导数，可以看到 RNN 求梯度的时候，实际上用到了 (tanh' × W) 的连乘。当 (tanh' × W) > 1 时，多次连乘容易导致梯度爆炸；当 (tanh' × W) < 1 时，多次连乘容易导致梯度消失。
